Pressure Transmitter Gauges

smart iot fire extinguisher Gauges siG-36

FEATURES:
Long range transmission up to 20 km in wide open areas
 Real-time accessibility 24/7
Notify when extinguisher is removed or pressure is below safety level
Notify when extinguishers expires
Device expansions available
Built-in mobile "EMERGENCY" button makes every extinguisher a life saver
Mobile accessibility when you are on the GO. (iOS/Android Apps, and PC Portal)
LoRa Gateways can monitor thousands of IoT Fire Extinguisher Gauges at the same time.
catalog download
Mechanical Pressure Transmitter Pressure Gauges

PRESSURE TRANSMITTER GAUGES MTG-100

SPECS:
Models: SIG-36 (36 mm)
Pressure Ranges: Assigned by customers.
Dial Sizes: 36 mm
Bourdon Tube: Standard brass with optional SS316
Movement: Standard brass
Connection: Standard brass, 1/8" PT or NPT, M10x1.2 to choose from
Pointer: Steel
Case: Stainless Steel, Center Back Mount
Engineering Units: psi, kg/cm2, MPa
Voltage: 3V
Transmittion: Periodic
Connectivity: LoRa
ISM Band: By region
Catalog download
Pressure Transmitter Gauges Side View

sig-36 Side View

Learn more

Other images

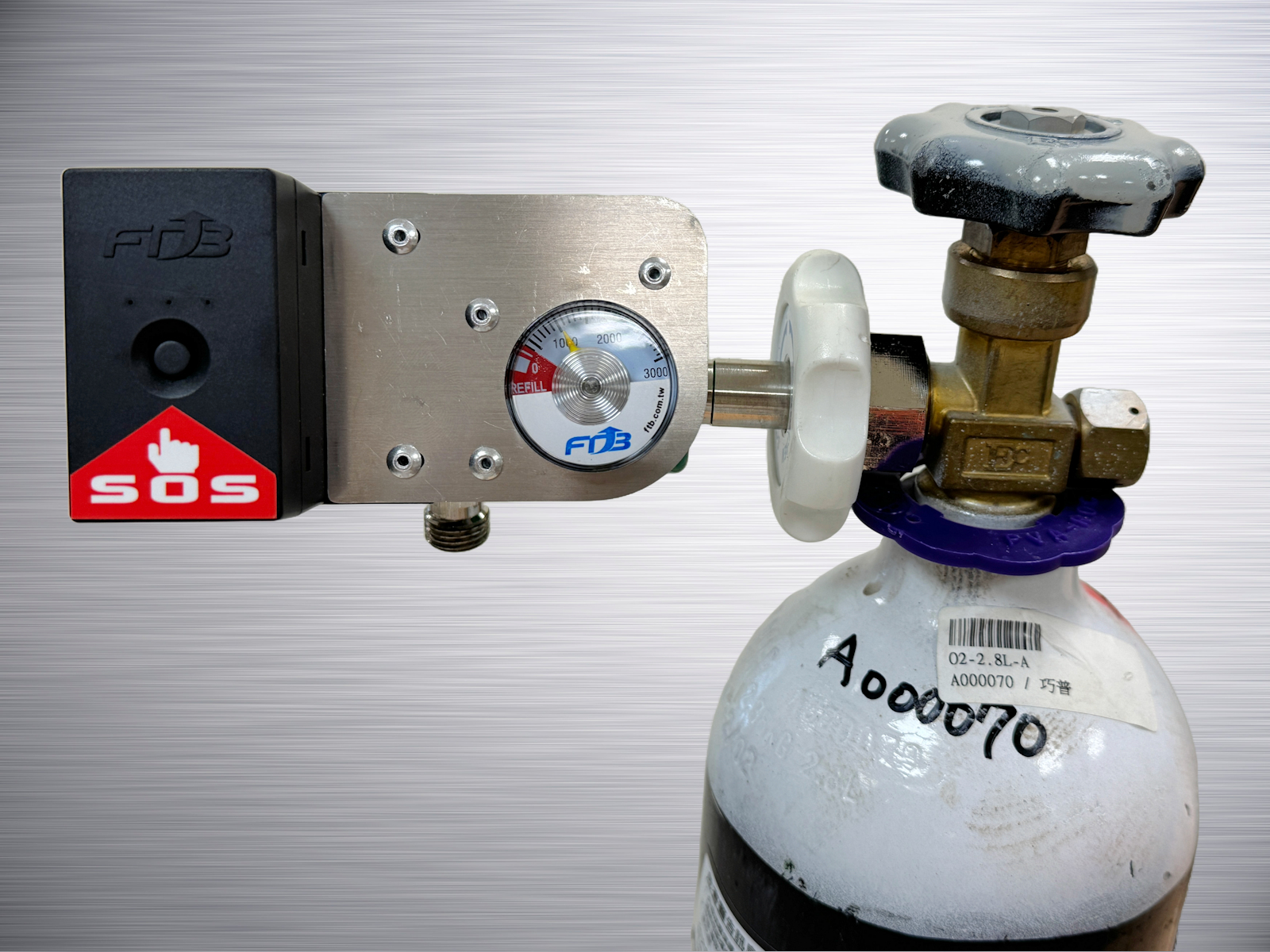

Please refer to the following images for other SIG-36 images.
